Vessel Embedded MapView

Vessel Embedded MapView feature allows seamless integration of the TRADLINX Ocean Visibility map page (https://app.tradlinx.com) into your own services.
It is supported in environments that can run web browsers and <iframe /> elements.
Fully compatible with modern browsers such as Chrome and Microsoft Edge.
For best performance, we recommend the following dimensions based on usage:
- With vessel card list view (expanded): 1440 X 900
- Map-only view (without vessel card list): 800 X 600

🔔 API Update & Backward Compatibility Notice

The TRADLINX Ocean Visibility API may be updated from time to time to improve service quality, expand data coverage, and introduce new features.

When updating the API, we prioritize the stable operation of existing integrations and follow backward-compatible change principles, such as adding new fields.

Accordingly, we recommend that client systems be implemented in a backward-compatible manner so that they can continue to operate normally even when unknown or newly added fields are included in API responses.

If any changes may affect existing integrations, we will provide advance notice.

Request Format

JSON Web Token Issuance

URL: https://api.tradlinx.com/partners/auth/authenticate
HTTP Method: POST
Header
- tx-clientid: Your issued CLIENT ID
- tx-apikey: Your issued API KEY
⚠️ Important: API_KEY and CLIENT_ID are sensitive credentials. Do not expose them publicly. If compromised or leaked, the partner is fully responsible for any resulting security breaches.

TRADLINX Ocean Visibility Vessel Embedded MapView Server

To retrieve data from the Vessel Embedded MapView server, make a request using the following specs:
URL
- https://app.tradlinx.com/partner-mapview/api/vessel
HTTP Method: POST
Body
- Form Data (Content-Type: application/x-www-form-urlencoded)

Field	Type	Description	Default
*authorization	string	Authorization key	-
searchType	"keyword", "trackGroup"	Type of search query	"keyword"
searchValue	string	Value to search for	-
lang	"ko", "en"	Language selection	"ko"
*detail	"SHOW_ALL", "HIDE_TABS", "HIDE_ALL"	Method of displaying vessel details	"SHOW_ALL"
trackGroupFilter	boolean	Whether to apply the vessel group filter	true
startMode	"LIST", "HIDE_LIST", "DETAIL"	Initial state of the map view when loaded	"LIST"
controllers	string[]	Activate only specified controllers (if requested)	["FULL_SCREEN", "DIMENSION", "LANG_SET"]
detailTabs	string[]	Activate only specified controllers (if requested)	["PORT_CALLS", "SAIL_LOG"]

searchType

Value	Description
keyword	imo, mmsi, vesselName, callSign
trackGroup	Vessel Group Name

searchValue

Value	Description
keyword	Up to 50 entries, separated by commas (,)
trackGroup	Up to 50 entries

detail

Value	Description
SHOW_ALL	Show all vessel details
HIDE_TABS	Hide tabs in vessel details
HIDE_ALL	Hide all vessel details

startMode

Value	Description
LIST	Show vessel list when map view is loaded
HIDE_LIST	Hide vessel list and load map view only
DETAIL	Show details of the first vessel on load

controllers

Value	Description
FULL_SCREEN	Refers to the full-screen controller
DIMENSION	Refers to the 2D/3D view toggle controller
LANG_SET	Refers to the language switch controller

detailTabs

Value	Description
PORT_CALLS	Refers to the "Route" tab within the expanded vessel card view
SAIL_LOG	Refers to the "Route Log" tab within the expanded vessel card view

Request Flow

The green-highlighted Backend Middleware refers to a server you (the partner) must implement.

mapview_flow

[1] The browser requests an authentication token from your middleware.
[2] The middleware receives the request and uses a securely stored Client ID and API Key to request a JWT (JSON Web Token).
[3], [4] The browser receives the returned token.
[5] The browser submits a request to the TRADLINX Ocean Visibility Vessel Embedded MapView Server, including the token, using the appropriate request format.
[6] The map is displayed.

Code Example

We've provided a sample code snippet for quick testing.
You may implement this differently, as long as it adheres to the required request specification.
The code below is for reference only.

<!DOCTYPE html>
<html>
  <head>
    <title>TRADLINX Ocean Visibility Vessel Embedded MapView TEST</title>
  </head>
  <body>
    <form action="https://app.tradlinx.com/partner-mapview/api/vessel" name="viewer_form" id="viewer_form" target="viewer" method="post">
      <div id="oceanVisibilityMap">
        <!-- Input area start -->
        <div>
          <div>Vessel Details</div>
          <div>
            <input type="radio" name="detail" value="SHOW_ALL" id="detailShowAll" checked />
            <label for="detailShowAll">View All</label>
            <input type="radio" name="detail" value="HIDE_TABS" id="detailHideTabs" />
            <label for="detailHideTabs">View Summary</label>
            <input type="radio" name="detail" value="HIDE_ALL" id="detailHideAll" />
            <label for="detailHideAll">Hide All</label>
          </div>
        </div>
        <div>
          <div>Language</div>
          <div>
            <input type="radio" name="lang" value="ko" id="langKo" checked />
            <label for="langKo">Korean</label>
            <input type="radio" name="lang" value="en" id="langEn" />
            <label for="langEn">English</label>
          </div>
        </div>
        <div>
          <div>Vessel Group Filter</div>
          <div>
            <input type="radio" name="trackGroupFilter" value="true" id="trackGroupFilterOn" checked />
            <label for="trackGroupFilterOn">Show filter</label>
            <input type="radio" name="trackGroupFilter" value="false" id="trackGroupFilterOff" />
            <label for="trackGroupFilterOff">Hide filter</label>
          </div>
        </div>
        <div>
          <div>Initial View</div>
          <div>
            <input type="radio" name="startMode" value="LIST" id="startModeList" checked />
            <label for="startModeList">Show vessel list</label>
            <input type="radio" name="startMode" value="HIDE_LIST" id="startModeHideList" />
            <label for="startModeHideList">Hide vessel list</label>
            <input type="radio" name="startMode" value="DETAIL" id="startModeDetail" />
            <label for="startModeDetail">View first vessel details</label>
          </div>
        </div>
        <div>
          <div>Controller Options</div>
          <div>
            <input type="checkbox" name="controllers" value="FULL_SCREEN" id="controllersFullScreen" checked />
            <label for="controllersFullScreen">Full screen</label>
            <input type="checkbox" name="controllers" value="DIMENSION" id="controllersDimension" />
            <label for="controllersDimension">2D / 3D toggle</label>
            <input type="checkbox" name="controllers" value="LANG_SET" id="controllersLangSet" />
            <label for="controllersLangSet">Language toggle</label>
          </div>
        </div>
        <div>
          <div>Tabs in Vessel Details</div>
          <div>
            <input type="checkbox" name="detailTabs" value="PORT_CALLS" id="detailTabsPortCalls" />
            <label for="detailTabsPortCalls">Route tab</label>
            <input type="checkbox" name="detailTabs" value="SAIL_LOG" id="detailTabsSailLog" />
            <label for="detailTabsSailLog">Route log tab</label>
          </div>
        </div>
        <div>
          <div>Search</div>
          <div>
            <select name="searchType" id="selectType">
              <option value="keyword">Keyword</option>
              <option value="trackGroup">Vessel Group</option>
            </select>
            <input type="text" name="searchValue" id="searchValue" />
          </div>
          <div>
            <button type="submit" id="button_map">Search</button>
            <!-- End of input area -->
            <!-- Map view area start -->
            <div id="frame">
              <iframe
                style="border: 1px solid black; height: 700px; width: 100%"
                allowfullscreen
                name="viewer"
              >
              </iframe>
            </div>
            <!-- End of map view area -->
          </div>
        </div>
      </div>
    </form>
  </body>
  <script>
      window.addEventListener("DOMContentLoaded", () => {
        // Create <input type="hidden" /> with the token received from middleware
        fetch("{ Auth token endpoint }")
          .then((item) => item.text())
          .then((authToken) => {
            const input = document.createElement("input");
            input.setAttribute("type", "hidden");
            input.setAttribute("name", "authorization");
            input.setAttribute("value", authToken);
            const form = document.getElementById("viewer_form");
            form.appendChild(input);
          });
      });
  </script>
</html>

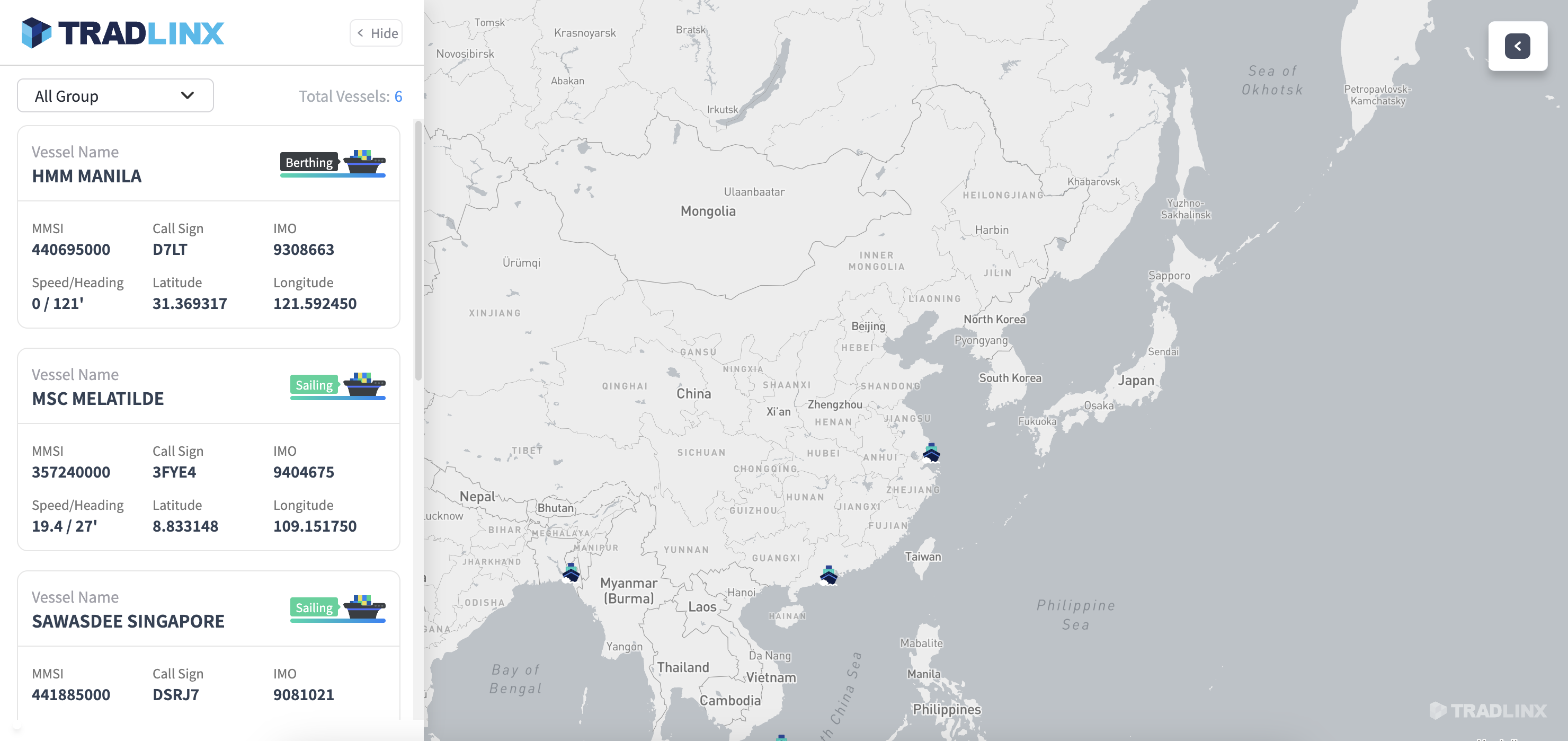

MapView Example

mapview_sample
